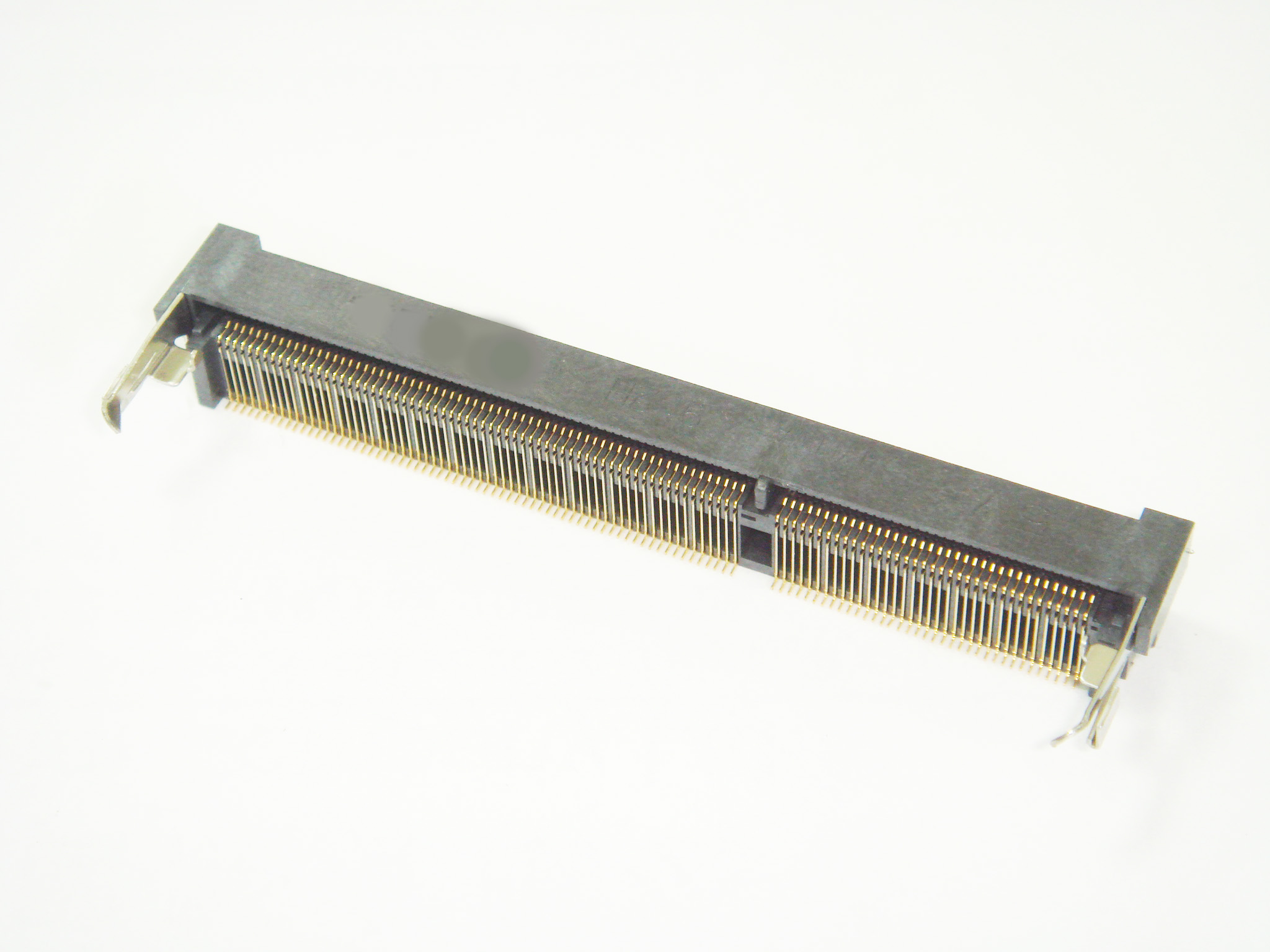

S.O.DIMM DDR3 SOCKET
PRODUCT INFO
TYPE:
CA0459-204B31
DESCRIPTION:
9.2H STANDARD TYPE
ECIFICATION



ELECTRICAL MECHANICAL ENVIRONMENTAL
Current Rating: 0.5A per pin Durability: 25 Cycle Operating temperature range: -40℃~+85℃
Voltage Rating: 25V AC/DC Latch Retention Force: 8N/Pos. Min Storage temperature range: -40℃~+85℃
Contact Resistance: 60mΩ
Insulation Resistance: 500MΩ
Dielectric Withstanding Voltage: 125VAC
