Photo Part No. Type Description Spec.
NGFF 4.0H BM-KEY M.2 CA1020-67B31 M.2 BM KEY Applications:SSD
NGFF 3.0H M-KEY M.2 CA1024-67B31 Applications:SSD devices and Host I/Fs supported
are PCIe with up to four lanes or SATA.

Module Card Type:2242, 2260, 2280, 22110
NGFF 4.0H M-KEY M.2 CA1019-67B31 Applications:SSD devices and Host I/Fs supported
are PCIe with up to four lanes or SATA.

Module Card Type:2242, 2260, 2280, 22110
NGFF 2.15H MAWM-215X01R M.2 連接器用於最多使用四條通道的PCIe或SATA以及固態存放裝置(SSD)支援的主機I/F 的應用中。使用的模組卡類型包括2242、2260、2280和22110
NGFF 3.0H A-KEY M.2 CA1021-67B31 Applications:Wireless Connectivity devices cluding combinations of Wi-Fi, BT,HFC, and/or WiGig.

Module Card Type:1630, 2230, 3030
NGFF 3.0H E-KEY M.2 CA1022-67B31 Applications:Wireless Connectivity devices including combinations of Wi-Fi, BT, NFC, and/ or GNSS.

Module Card Type:1630, 2230, 3030

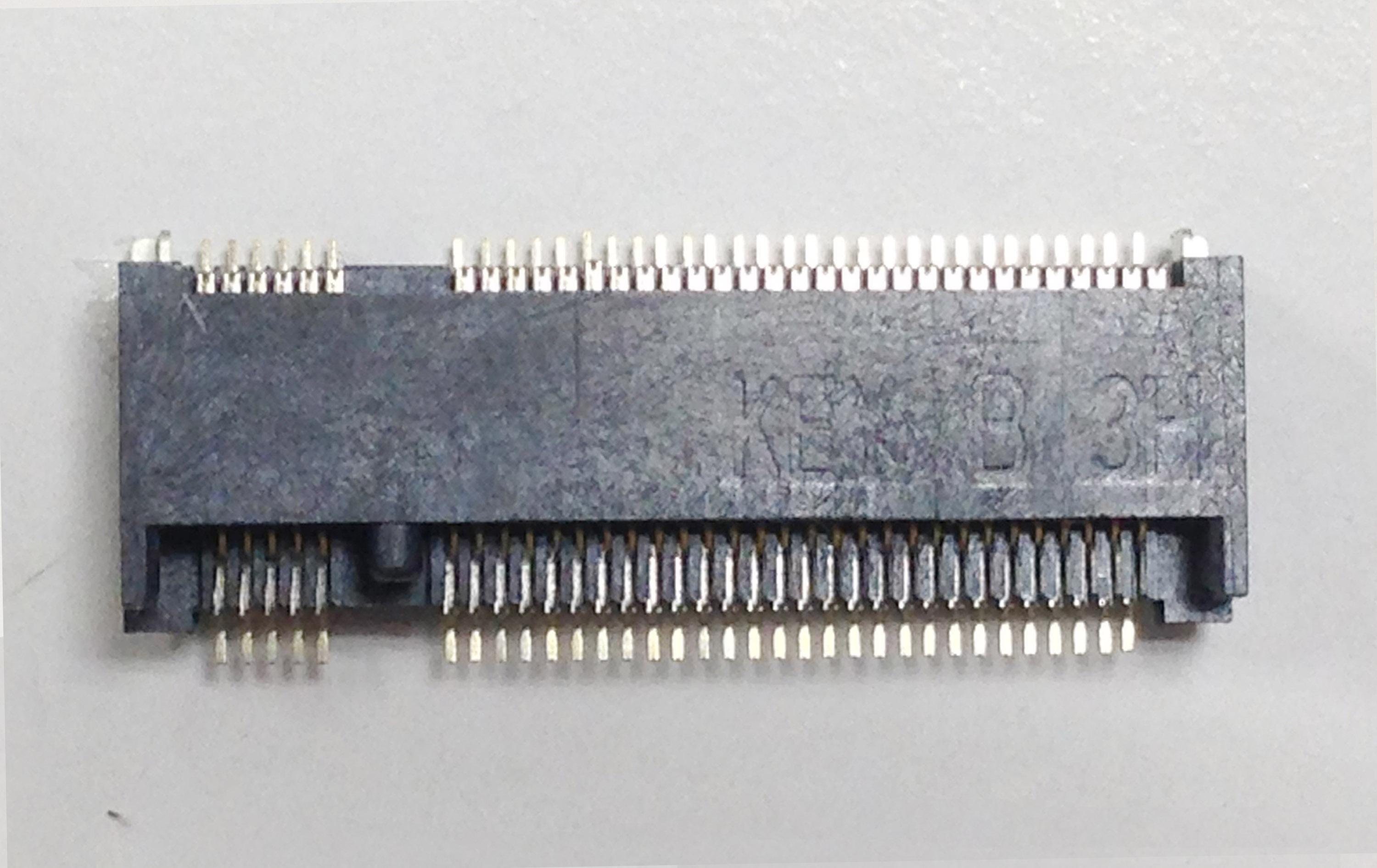

NGFF 3.0H B-KEY M.2 CA1023-67B31 Applications:WWAN+GNSS, or SSD

Module Card Type:3042, 2230, 2242, 2260, 2280, 22110
NGFF 4.0H B-KEY M.2 CA1018-67B31 Applications:WWAN+GNSS, or SSD

Module Card Type:3042, 2230, 2242, 2260, 2280, 22110
